Secure Eye-to-Sky Coiled Steel

The Correct Skidded Steel Coil Securing Procedure

Aluminum Coil in Eye-to-Sky Securing Procedure

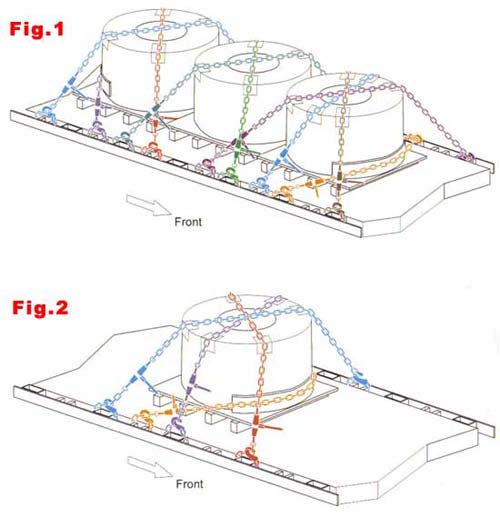

Steel Coil Procedure:

1. After loading the coil on the trailer in the approved location, check the pallet and banding to make sure they are secure and in good condition.
2. Using rubber-coated edge protectors or rubber belting, then secure 1 chain over the top of the coil, centered on each side.
3. Using rubber-coated edge protectors or rubber belting, secure 2 chains in an “X” over the coil, on top of the first chain.
   NOTE: Be sure that the ” X ” is spread over the coil to ensure that the coil will not slip out from under the chains.
4. Using rubber belting, secure a trip chain around the front of the coil, if securing more than 1 coil, use 1 trip chain around the front of the front coil, and 1 around the rear of the rear coil.
5. Tarp the load securely as required.
6. Secure all loose equipment, including chains and binders, lumber, tarps, rubber belting, coil racks, edge protectors, and load bar.

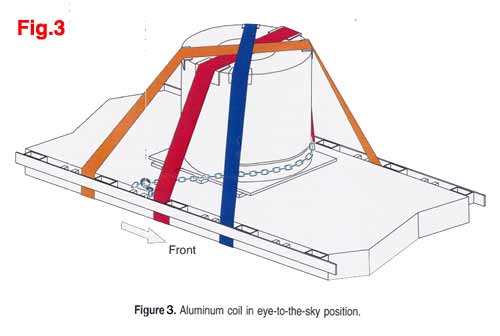

Aluminum Coil Procedure:

1. After loading the coil on the truck in the approved location, check the pallet and banding to make sure they are secure and in good condition.
2. Using rubber belting, use one 4″ strap straight over the top of the coil, and then two 4″ straps in an ” X ” over the top of the coil.
3. Using rubber belting, secure one trip chain around the front of the coil. If securing more than 1 coil, use 1 trip chain around the front of the front coil, and 1 around the rear of the rear coil.
4. Tarp the load securely as required.
5. Secure all loose equipment, including chains and binders, lumber, tarps, rubber belting, coil racks, edge protectors, and load bar.
